SUN-8K-SG01LP1-EU-AM2

SUN-8K-SG01LP1-EU-AM2 | Single Phase Hybrid Inverter | 2 MPPT | LV Battery Supported

You do not have the permission to see the prices
Currently Unavailable
Item No.: SUN-8K-SG01LP1-EU-AM2
Manifacturer:
Product-Type:
Print Product Sheet
The Deye SUN-8K-SG01LP1-EU-AM2 is a high-performance single-phase hybrid inverter with 2 MPPTs, 190 A battery current, and up to 16 kW PV input. Designed for low-voltage battery systems, it supports parallel operation, AC coupling, generator storage, and full remote monitoring.

SUN-8K-SG01LP1-EU-AM2 | Single Phase Hybrid Inverter | 2 MPPT | LV Battery Supported

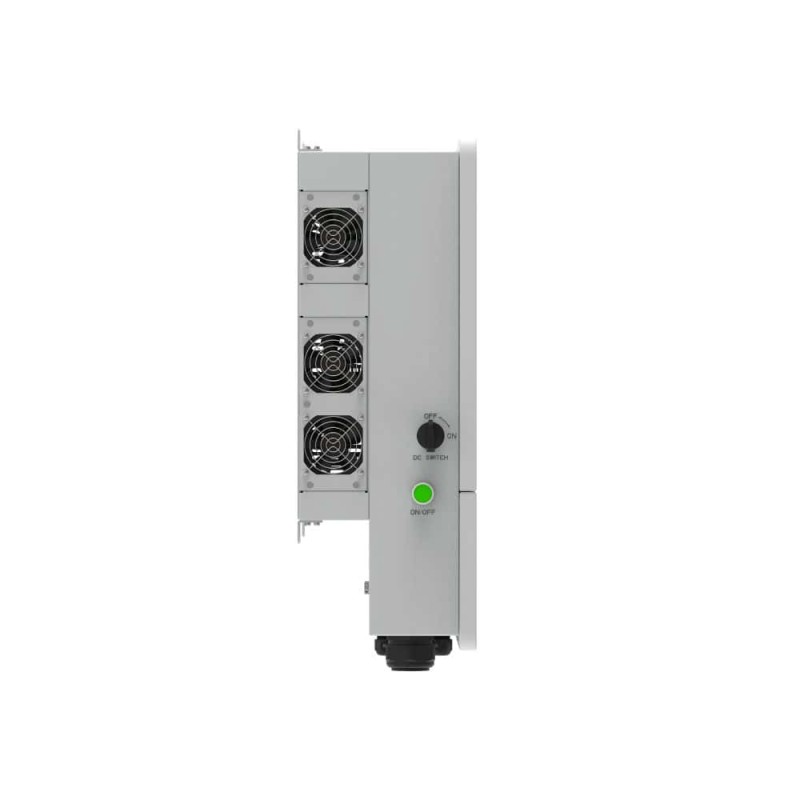

Artikelbild 0 SUN-8K-SG01LP1-EU-AM2 | Single Phase Hybrid Inverter | 2 MPPT | LV Battery Supported

The Deye SUN-8K-SG01LP1-EU-AM2 is a powerful single-phase low-voltage hybrid inverter designed for modern residential and small commercial solar systems. With 2 independent MPPTs, up to 16 kW PV access power, and an impressive 190 A charging/discharging current, it delivers outstanding performance for energy storage and self-consumption. Featuring AC coupling for retrofits, diesel generator storage support, parallel operation up to 16 units, and full remote monitoring, this inverter offers maximum flexibility, safety, and efficiency in one compact IP65 solution.

Key Advantages

190 A Charge/Discharge Current
Extremely fast battery charging and high-power discharge capability
2 MPPTs – 16 kW PV Access
Perfect for larger PV arrays and complex roof layouts
LV Battery Support (40–60 V)
Compatible with lead-acid and lithium-ion batteries with BMS self-adaption
Up to 16 Units in Parallel
Scalable on-grid and off-grid systems with multi-battery parallel capability
AC Coupling for Retrofits
Easily integrates into existing solar installations without replacing equipment
Diesel Generator Energy Storage
Stores surplus generator energy for full backup operation
6 Programmable Time Periods
Optimized battery scheduling for peak shaving and cost savings
Premium Protection & Remote Monitoring
IP65 housing, Type II surge protection, and optional WiFi/4G connectivity

Deye SUN-8K-SG01LP1-EU-AM2 – The Smart 8 kW Hybrid Power Solution

8 kW · 2 MPPT · 16 kW PV Access · 190 A · LV Battery · Parallel 16× · Diesel Storage · IP65 · Remote Monitoring

No additional variants available.

SpecificationSUN-8K-SG01LP1-EU-AM2
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range 40 – 60 V
Max. Charging / Discharging Current 190 A
Li-ion Charging Strategy Self-adaption to BMS
PV String Input Data
Max. PV Access Power 16,000 W
MPPT Voltage Range 150 – 425 V
Max. PV Input Voltage 500 V
Max. PV Operating Current 26 A + 26 A
MPPT Trackers 2
AC Input / Output Data
Rated AC Output Power 8,000 W
Max. Apparent Power 8,800 VA
Peak Off-grid Power 2× rated power (10 s)
Grid Connection L + N + PE
General & Protection
Max. Efficiency 97.6%
Protection Degree IP65
Operating Temperature –40 °C to +60 °C
Communication RS485 / CAN, optional WiFi / GPRS / 4G
Warranty 5 – 10 years
More Informations: See Downloads
Display: Colorful touch LCD, IP65 protection degree
System Compatibility: AC couple to retrofit existing solar systems
Parallel Operation: Max. 16 pcs in parallel for on-grid and off-grid operation
Warranty: 5 Years / 10 Years (The warranty period depends on the final installation site of the inverter.)
