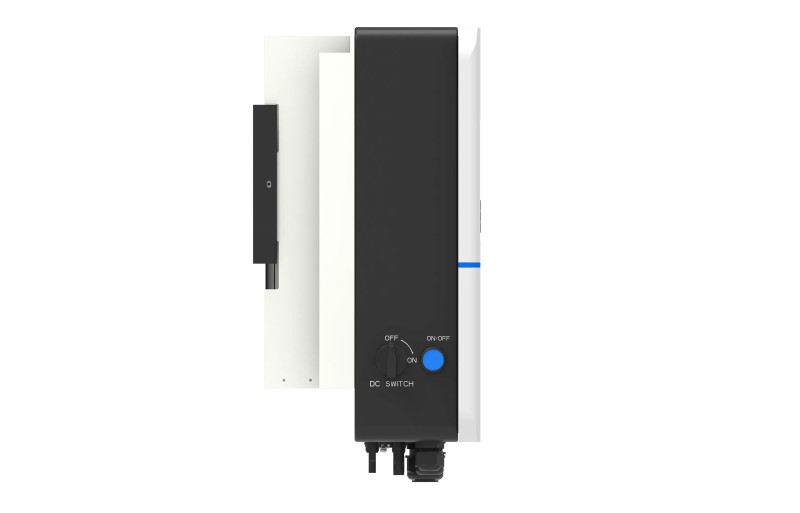

SUN-10K-SG01HP3-EU-DM2 | Three Phase Hybrid Inverter | 5-12kW | 2 MPPT | HV Battery Supported
The Deye SUN-5/6/8/10/12K-SG01HP3-EU-DM2 is the advanced three-phase hybrid inverter series featuring high-voltage battery support for maximum efficiency. With 100% unbalanced output capability, up to 24 kW PV access power, and parallel operation of up to 10 units (on-grid & off-grid), it delivers exceptional flexibility. The DM2 series supports AC coupling for retrofitting existing solar systems, diesel generator energy storage, and 6 programmable charge/discharge time periods. Natural cooling ensures whisper-quiet operation at ≤45 dB, while comprehensive protection features and IP65 rating guarantee reliable performance in any environment.
Key Advantages
High Voltage Battery Support
160-700V range for higher efficiency and performance
100% Unbalanced Output
Flexible load distribution across all three phases
Up to 24 kW PV Access
Massive solar capacity with 1000V max input voltage
Up to 10 Units in Parallel
Up to 120 kW total system power on-grid and off-grid
6 Freely Programmable Time Periods
Optimal cost and self-consumption management
AC Coupling
Ideal retrofit solution for existing solar systems
Diesel Generator Storage
Full emergency power capability
Natural Cooling ≤45 dB
Ultra-quiet operation for residential areas
Deye SUN-5/6/8/10/12K-SG01HP3-EU-DM2 – The HV Battery Hybrid
HV Battery 160-700V · 37A · 24 kW PV · 100% Unbalanced · Parallel 10× · 1000V · ≤45 dB · IP65
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
No additional variants available.
| Parameter | SUN-5K
SG01HP3-EU-DM2 | SUN-6K
SG01HP3-EU-DM2 | SUN-8K
SG01HP3-EU-DM2 | SUN-10K
SG01HP3-EU-DM2 | SUN-12K
SG01HP3-EU-DM2 |
|---|
| Battery Input Data |
| Battery Type |
Lithium-ion |
| Battery Voltage Range |
160–700 V |
| Max. Charge/Discharge Current |
37 A |
| Charging Strategy for Li-ion |
Self-adaption to BMS |
| Number of Battery Inputs |
1 |
| PV String Input Data |
| Max. PV Access Power |
10 kW |
12 kW |
16 kW |
20 kW |
24 kW |
| Max. PV Input Power |
8 kW |
9.6 kW |
12.8 kW |
16 kW |
19.2 kW |
| Max. PV Input Voltage |
1000 V |
| Start-up Voltage |
180 V |
| MPPT Voltage Range |
150–850 V |
| Rated PV Input Voltage |
600 V |
| Max. Operating PV Current |
27 + 27 A |
| Max. Short-Circuit Current |
18 + 18 A |
| No. of MPP Trackers / Strings per MPP |
2 / 1+1 |
| AC Input/Output Data |
| Rated Output Power |
5000 W |
6000 W |
8000 W |
10000 W |
12000 W |
| Max. Apparent Power |
5500 VA |
6600 VA |
8800 VA |
11000 VA |
13200 VA |
| Rated Current (In/Out) |
7.6 / 7.3 A |
9.1 / 8.7 A |
12.2 / 11.6 A |
15.2 / 14.5 A |
18.2 / 17.4 A |
| Max. Current (In/Out) |
8.4 / 8 A |
10 / 9.6 A |
13.4 / 12.8 A |
16.7 / 16 A |
20 / 19.2 A |
| Max. Continuous AC Passthrough |
35 A |
| Peak Power (Off-Grid) |
1.5 × rated power, 10 s |
| Grid Connection Form |
3L+N+PE |
| THDi |
< 3% |
| DC Injection Current |
< 0.5% In |
| Efficiency & General Data |
| Max. Efficiency |
97.6 % |
| Euro Efficiency |
97.0 % |
| MPPT Efficiency |
> 99 % |
| Operating Temperature Range |
-40 to +60°C (>45°C derating) |
| Protection Rating |
IP65 |
| Noise Emission |
≤ 45 dB |
| Parallel Operation |
Up to 10 units (on-grid & off-grid) |
| Programmable Charge/Discharge Periods |
6 time periods |
| Diesel Generator Energy Storage |
Supported |
| Cooling Type |
Natural Cooling |
| Weight |
24 kg |
24.5 kg |
| Dimensions (W×H×D) |
376 × 470 × 244.5 mm |
| Warranty |
5 / 10 Years |
| More Informations: |
See Downloads |
| Display: |
Colorful touch LCD, IP65 protection degree |
| System Compatibility: |
AC couple to retrofit existing solar systems |
| Generator Integration: |
Supports storing energy from diesel generators |
| Warranty: |
5 Years / 10 Years (The warranty period depends on the final installation site of the inverter.) |
