Deye Deye-Converter MS-TS500-2-A

MS-TS500-2-A [215 kWh] | C&I ESS Solution
Produktbild

Hersteller
MS-TS500-2-A

MS-TS500-2-A [215 kWh] | C&I ESS Solution

You do not have the permission to see the prices
Availability: Immediately available
Delivery Time: after offer evaluation
Send Request
Item No.: MS-TS500-2-A
Manifacturer: Deye-Converter
Product-Type: Deye
Print Product Sheet

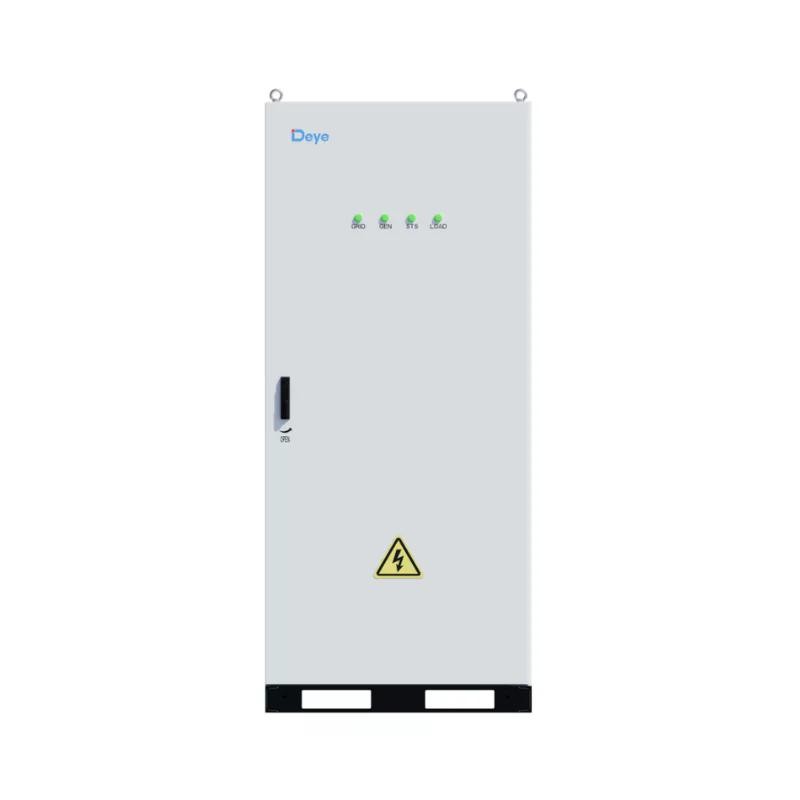

The MS-TS500-2-A is an advanced hybrid AC power management system for grid-tied and off-grid applications. With intelligent EMS control, seamless mode switching, ESS integration, and generator management, it ensures reliable and efficient power supply at all times.

MS-TS500-2-A [215 kWh] | C&I ESS Solution

Artikelbild 0 MS-TS500-2-A [215 kWh] | C&I ESS Solution

The MS-TS500-2-A is an advanced AC power management system designed for both grid-tied and off-grid operation. Equipped with an integrated energy management system, it enables seamless switching between operating modes and ensures continuous power supply under all conditions. This sophisticated solution optimizes the interaction between the grid, energy storage systems, and generators for maximum reliability and efficiency.

Key Features

Hybrid Power Management
Automatically switches between on-grid, off-grid, and hybrid switching modes
Intelligent ESS Integration
Works seamlessly with energy storage systems to optimize power usage and efficiency
Generator Control
Manages generator startup and operation based on ESS state of charge (SOC)
Remote Monitoring
Includes comprehensive monitoring, diagnostics, and remote control capabilities

Operation Modes

ModeDescription
On-Grid Mode When utility power is available, the system operates connected to the grid, using grid power as the primary source.
Off-Grid Mode During grid failures, the system automatically transitions into off-grid operation. If the ESS state of charge (SOC) falls below the configured threshold, the system can:
  • Initiate generator startup
  • Direct generator power to loads
  • Use surplus generator power to charge the ESS

MS-TS500-2-A – Advanced Hybrid AC Power Management

Seamless Grid & Off-Grid Switching · ESS & Generator Integration · Intelligent EMS · Remote Monitoring

Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG Represented by: SYD Verwaltungs GmbH An der Gümpgesbrücke 26 41564 Kaarst Deutschland Diese vertreten durch: Andrej Dedic und Maurice Dedic Tel.: +492131 52811-23 Mail: info@solarset.shop

No additional variants available.

ParameterValue
Model MS-GS215-2H3
Battery Chemistry LiFePO4
Energy Capacity 215 kWh
Operating Voltage 660 Vdc ~ 864 Vdc
Grid Type 3L / N / PE
System Communication ETH / 4G
Enclosure Protection Rating IP54
Weight approx. 3030 kg
Dimensions (W×H×D) 1865 × 1000 × 2500 mm
Certifications UN3536 / IEC61000 / IEC62477 / IEC60730
More Informations: See Downloads
