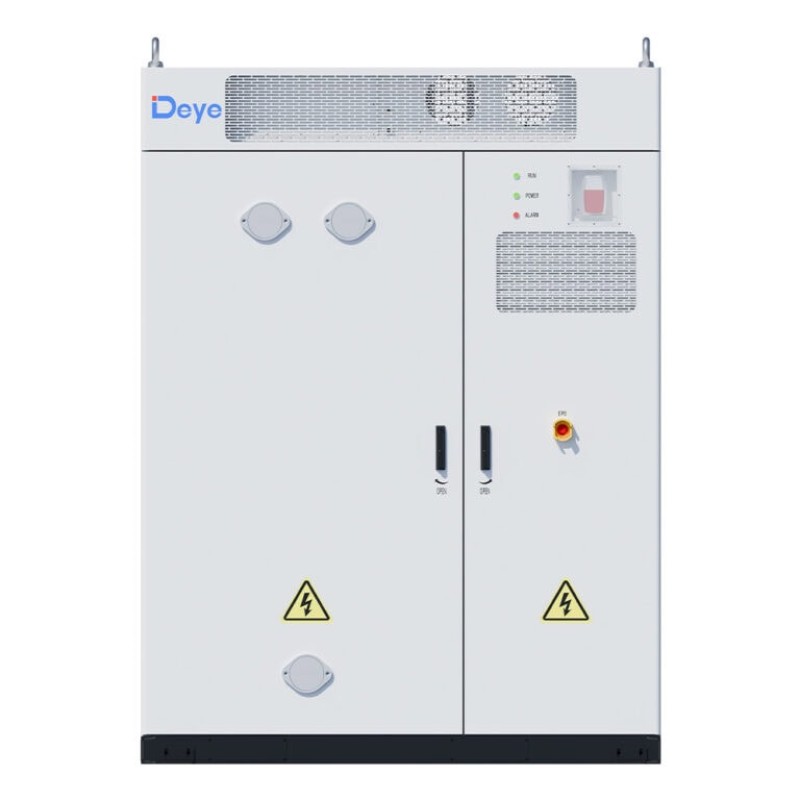

MS-GS215-2H3 [215 kWh] | C&I ESS Solution
![Artikelbild 0 MS-GS215-2H3 [215 kWh] | C&I ESS Solution](images/product_images/popup_images/1113_0.jpg)
The MS-GS215-2H3 energy storage system is a modern C&I solution based on safe LiFePO4 technology, designed for commercial and industrial applications. With 215 kWh capacity per unit, intelligent control, and high scalability into the multi-megawatt range, it delivers maximum efficiency, grid stability, and reliable backup functionality.
Key Features
Extremely Scalable
Up to 20 units in parallel, max. 2 MW / 4.3 MWh (on-grid)
Intelligent Energy Management
Temperature control (<35 °C), peak-valley shaving & load tracking
High Operational Reliability
Operation from –20 °C to +50 °C, up to 3000 m altitude, IP54 & C5 protection class
Maximum Safety
LiFePO4 cells, aerosol fire suppression & explosion-proof battery compartment
Multi-Fusion System Integration
EMS/PCS/BMS in one system, MPPT expansion & off-grid backup support
Durable & Robust
≥6000 cycles, 10-year warranty, 70% EOL, 1.1× overload capability
Technical Specifications
| Parameter | Value |
|---|
| Model |
MS-GS215-2H3 |
| Battery Chemistry |
LiFePO4 |
| Energy Capacity |
215 kWh |
| Operating Voltage |
660 Vdc ~ 864 Vdc |
| Grid Type |
3L / N / PE |
| System Communication |
ETH / 4G |
| Enclosure Protection Rating |
IP54 |
| Weight |
approx. 3030 kg |
| Dimensions (W×H×D) |
1865 × 1000 × 2500 mm |
| Certifications |
UN3536 / IEC61000 / IEC62477 / IEC60730 |

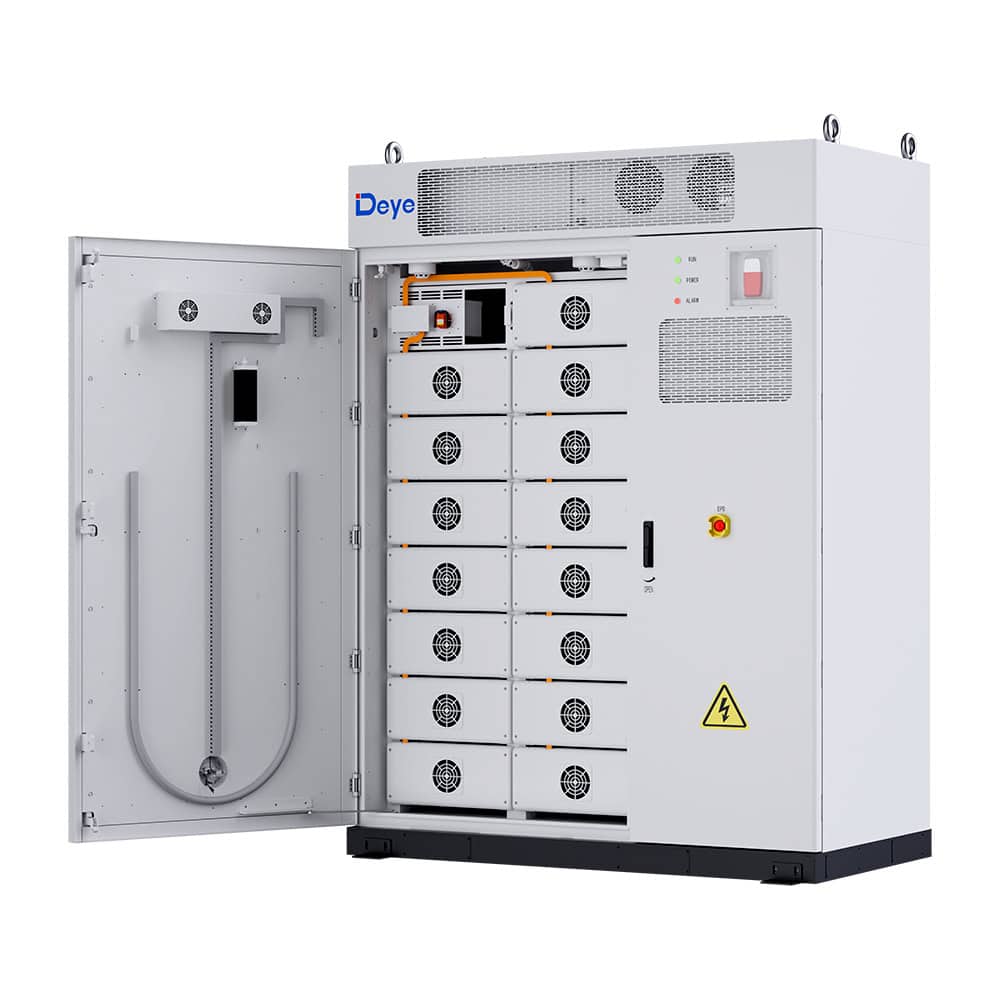

MS-GS215-2H3 – Commercial High-Performance Energy Storage System
215 kWh per unit · Scalable up to 4.3 MWh · ≥6000 cycles · IP54 · 10-year warranty
