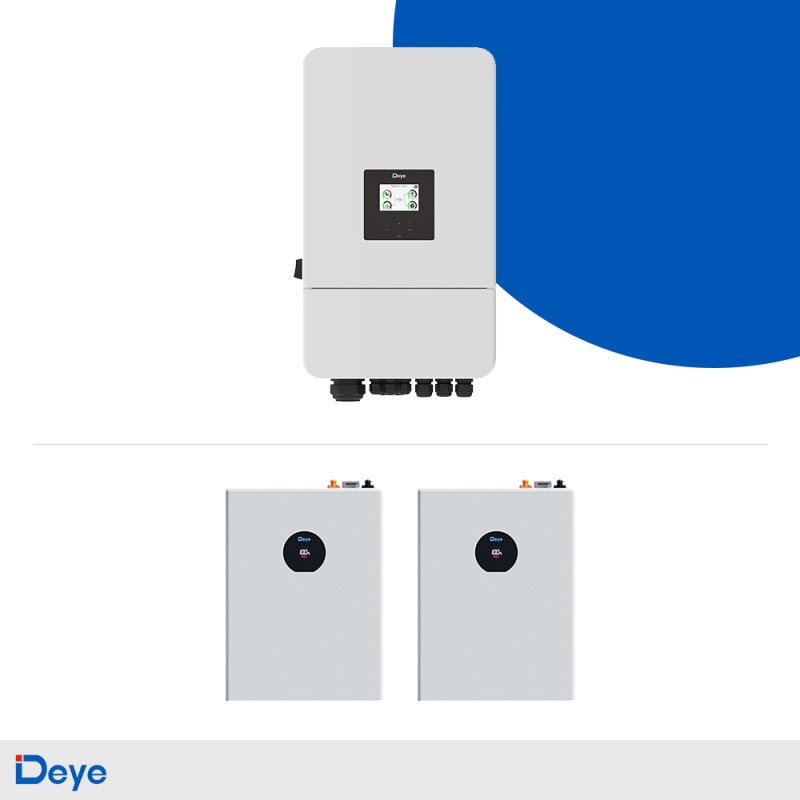

Deye SUN-12K-SG05LP3-EU + 2x SE-F5 Pro-C 5.12 kWh | ESS SET
In diesem Set enthalten:
1 × SUN-12K-SG05LP3-EU-SM2 | Three-Phase Hybrid Inverter | 2 MPPT | LV Battery Supported
2 × SE-F5 Pro-C Solar Battery System (Display Screen Version) | ESS

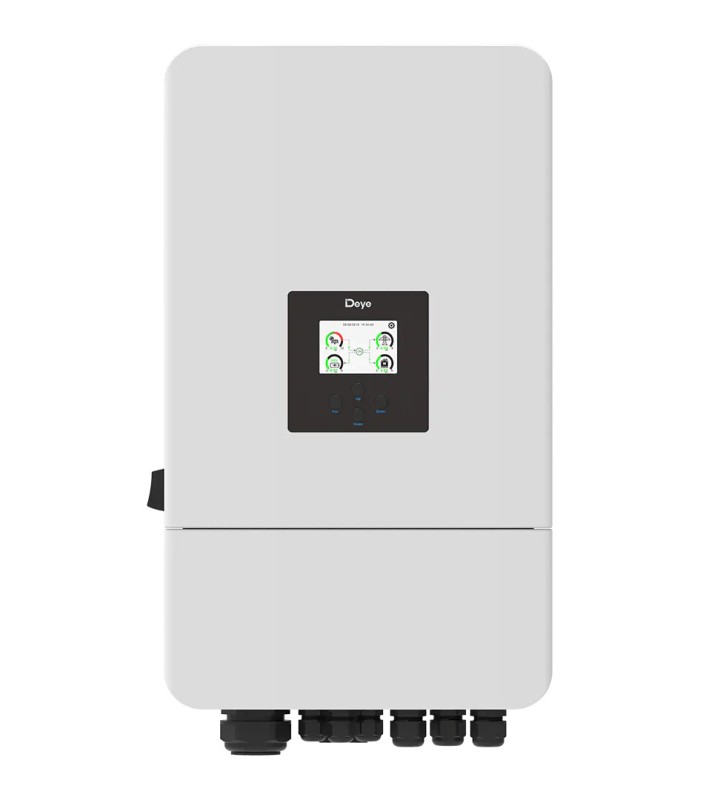

Produktbeschreibung SUN-12K-SG05LP3-EU-SM2 | Three-Phase Hybrid Inverter | 2 MPPT | LV Battery Supported
+
The Deye SUN-12K-SG05LP3-EU-SM2 is a powerful 12 kW three-phase low-voltage hybrid inverter with an impressive maximum charge/discharge current of 240 A – one of the highest in its class. Thanks to its transformer-isolated 48 V architecture, it is extremely safe and compatible with both lithium and lead-acid batteries. It supports parallel operation of up to 10 units (on- and off-grid), 100 % unbalanced load (each phase up to 50 %), AC coupling for retrofitting, diesel generator energy storage and six freely programmable time slots. With 2 MPPTs, up to 24 kW PV access and a peak off-grid power of 24 kW (2× rated power for 10 s), it is the perfect all-rounder for large homes, multi-family houses and small commercial applications.
Key Advantages
240 A Charge/Discharge
Lightning-fast battery cycling
100 % Unbalanced Load
Each phase independently up to 50 %
2× Peak Power Off-Grid
24 kW for 10 seconds
Parallel up to 10 Units
Up to 120 kW total power
AC Coupling
Perfect retrofit solution
Diesel Generator Compatible
Stores generator energy
48 V Low Voltage + Transformer Isolation
Maximum safety
Six Time Slots
Optimal tariff management
Deye SUN-12K-SG05LP3-EU-SM2 – The 12 kW Low-Voltage Powerhouse
240 A · 24 kW PV · 100 % Unbalanced · 2× Peak Off-Grid · Parallel 10× · Diesel Compatible · IP65

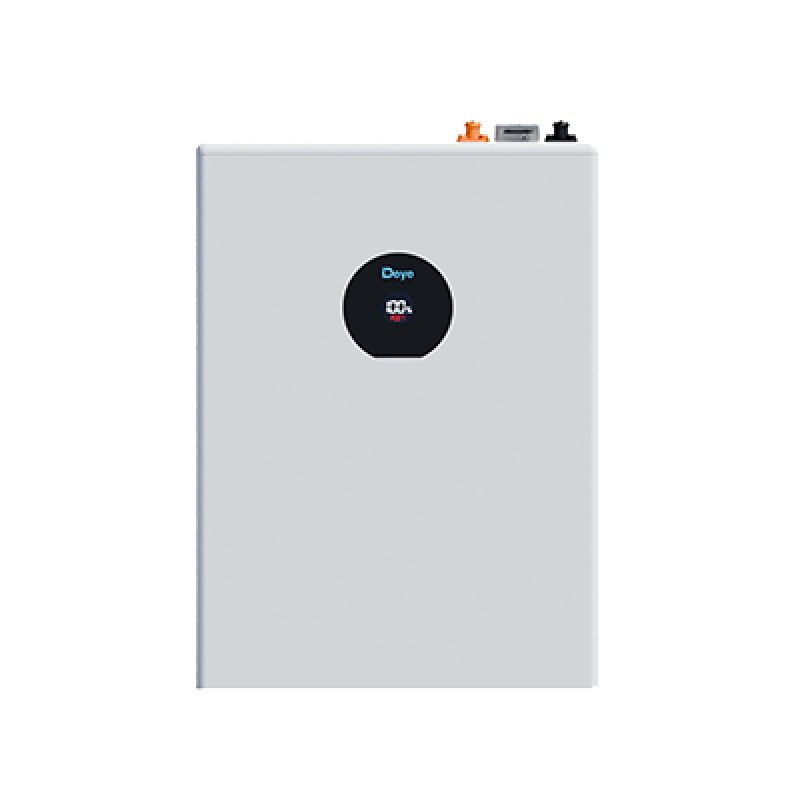

Produktbeschreibung SE-F5 Pro-C Solar Battery System (Display Screen Version) | ESS
+
The Deye SE-F5 Pro is the perfect 5.12 kWh LiFePO₄ high-voltage battery module for modern residential storage systems. With full 1C power (100 A continuous / 150 A peak for 2 minutes), up to 32 modules in parallel (163.84 kWh total), >6,000 cycles, active fuse protection and optional WiFi/Bluetooth monitoring, it offers maximum performance, safety and flexibility in an ultra-compact, lightweight package.
Key Features
Full 1C Performance 100 A continuous charge & discharge – 150 A peak for 120 s
Huge Scalability Up to 32 modules parallel → 163.84 kWh total
Extreme Longevity ≥6,000 cycles at 90 % DoD and 70 % EOL
Maximum Safety Advanced BMS + active fuse, extensive certifications
Smart & Connected CAN/RS485 + optional WiFi/Bluetooth + App monitoring
Ultra-Compact Only 44 kg and 404 × 547 × 141 mm – wall, floor or stack
Technical Specifications
| Category | Details |
|---|
| Battery & Performance |
- Chemistry: LiFePO₄ (100 Ah)
- Energy: 5.12 kWh (100 % usable at 90 % DoD)
- Continuous charge/discharge: 100 A (1C)
- Peak current: 150 A (120 s)
- Cycle life: ≥6,000
|
| ScalМ & Communication |
- Max. 32 modules parallel (163.84 kWh)
- CAN2.0 / RS485 + optional WiFi/Bluetooth + App
- Auto-networking & remote monitoring
|
| Physical & Environment |
- Dimensions: 404 × 547 × 141 mm
- Weight: ~44 kg
- IP21, –20 °C to +55 °C operation
- Wall / floor / stack mounting
|
Deye SE-F5 Pro – The ultimate 5.12 kWh 1C LiFePO₄ module: powerful, safe, scalable and only 44 kg!
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
| Parameter | Specification |
|---|
| Three-Phase Hybrid Inverter SUN-12K-SG05LP3-EU-SM2 |
| Battery Input Data |
| Battery Type |
Lead-acid or Lithium-ion |
| Battery Voltage Range |
40–60 V |
| Max. Charging/Discharging Current |
240 A |
| Number of Battery Inputs |
1 |
| Charging Strategy |
Self-adaptive to BMS |
| PV String Input Data |
| Max. PV Access Power |
24 kW |
| Max. PV Input Power |
18 kW |
| Max. PV Input Voltage |
800 V |
| Start-up Voltage |
160 V |
| MPPT Voltage Range |
200–650 V |
| Rated PV Input Voltage |
550 V |
| Number of MPP Trackers / Strings per MPPT |
2 / 2+2 |
| Max. Operating PV Input Current |
26 A + 26 A |
| Max. Short-Circuit Current |
39 A + 39 A |
| AC Output Data (On-Grid) |
| Rated Output Power |
12 kW |
| Max. Apparent Power |
13.2 kVA |
| Rated AC Current (400 V / 380 V) |
17.4 A / 18.2 A |
| Max. AC Current |
19.2 A / 20 A |
| Peak Power (Off-Grid) |
2 × rated power, 10 s |
| Max. Continuous AC Passthrough |
45 A |
| Rated Grid Voltage |
220/380 V, 230/400 V (3L+N+PE) |
| Efficiency |
| Max. Efficiency |
97.6 % |
| European Efficiency |
97.0 % |
| MPPT Efficiency |
> 99 % |
| Protection & Features |
| 100 % Unbalanced Output |
Yes (each phase up to 50 %) |
| Parallel Operation |
Up to 10 units |
| Diesel Generator Compatible |
Yes |
| General Data |
| Dimensions (W × H × D) |
386 × 660 × 253 mm |
| Weight |
35.2 kg |
| Cooling |
Intelligent air cooling |
| Noise Level |
≤ 55 dB |
| Protection Rating |
IP65 |
| Warranty |
5 years (extendable to 10 years) |
| Parameter | Description / Value |
|---|
| Deye SE-F5 Pro Battery Module |
| Battery Chemistry |
LiFePO₄ |
| Module Capacity |
100 Ah / 5.12 kWh |
| Usable Energy |
5.12 kWh (90 % DoD) |
| Scalability |
Max. 32 modules parallel (163.84 kWh) |
| Nominal Voltage |
51.2 V |
| Operating Voltage Range |
44.8 – 57.6 V |
| Max. Continuous Charge/Discharge |
100 A (1C) |
| Peak Current (120 s) |
150 A |
| Recommended DoD |
90 % |
| Cycle Life |
≥6,000 (25 °C ±2 °C, 70 % EOL) |
| Dimensions (W×H×D) |
404 × 547 × 141 mm (without hanging board) |
| Weight |
≈44 kg |
| Protection Rating |
IP21 |
| Operating Temperature |
Charge 0~55 °C / Discharge –20~55 °C |
| Communication |
CAN2.0, RS485, optional WiFi + Bluetooth + App |
| Installation |
Wall / Floor / Stack mounted |
| Certifications |
UN38.3, MSDS, CE, CB, VDE2510-50, FCC, UL1973, UL9540A, CEC |
