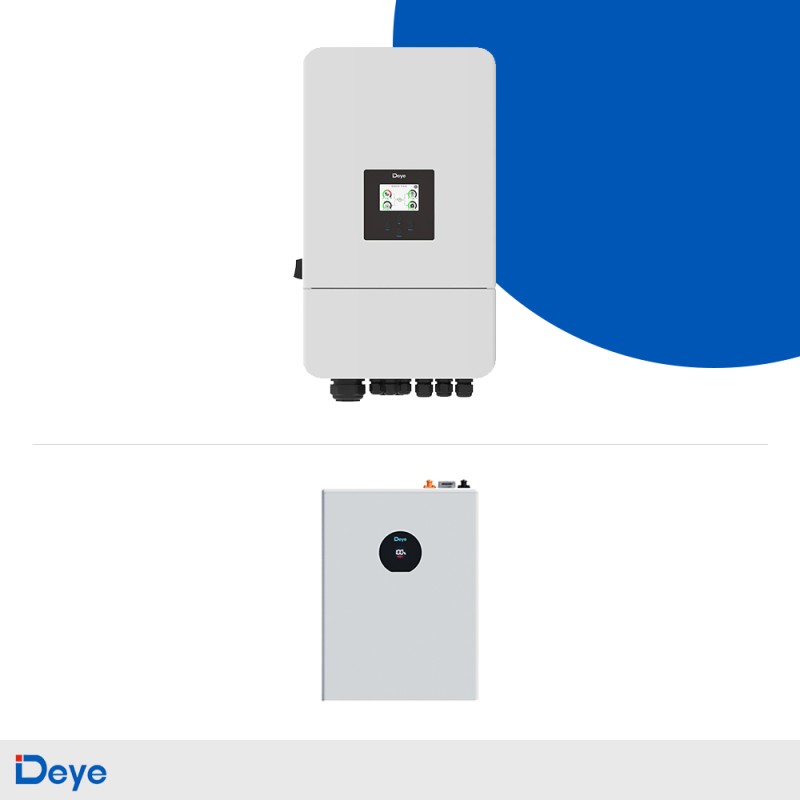

Deye SUN-12K-SG05LP3-EU + 1x SE-F5 Pro-C 5.12 kWh | ESS SET
In diesem Set enthalten:
1 × SUN-12K-SG05LP3-EU-SM2 | Three-Phase Hybrid Inverter | 2 MPPT | LV Battery Supported
1 × SE-F5 Pro-C Solar Battery System (Display Screen Version) | ESS
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet. Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet.

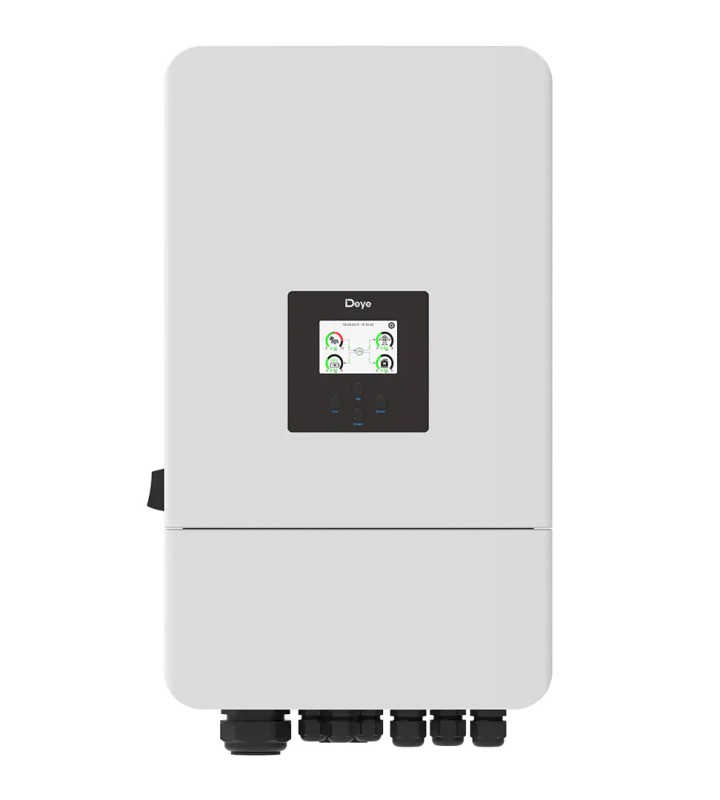

Produktbeschreibung SUN-12K-SG05LP3-EU-SM2 | Three-Phase Hybrid Inverter | 2 MPPT | LV Battery Supported
+
The Deye SUN-12K-SG05LP3-EU-SM2 is a powerful 12 kW three-phase low-voltage hybrid inverter with an impressive maximum charge/discharge current of 240 A – one of the highest in its class. Thanks to its transformer-isolated 48 V architecture, it is extremely safe and compatible with both lithium and lead-acid batteries. It supports parallel operation of up to 10 units (on- and off-grid), 100 % unbalanced load (each phase up to 50 %), AC coupling for retrofitting, diesel generator energy storage and six freely programmable time slots. With 2 MPPTs, up to 24 kW PV access and a peak off-grid power of 24 kW (2× rated power for 10 s), it is the perfect all-rounder for large homes, multi-family houses and small commercial applications.
Key Advantages
240 A Charge/Discharge
Lightning-fast battery cycling
100 % Unbalanced Load
Each phase independently up to 50 %
2× Peak Power Off-Grid
24 kW for 10 seconds
Parallel up to 10 Units
Up to 120 kW total power
AC Coupling
Perfect retrofit solution
Diesel Generator Compatible
Stores generator energy
48 V Low Voltage + Transformer Isolation
Maximum safety
Six Time Slots
Optimal tariff management
Deye SUN-12K-SG05LP3-EU-SM2 – The 12 kW Low-Voltage Powerhouse
240 A · 24 kW PV · 100 % Unbalanced · 2× Peak Off-Grid · Parallel 10× · Diesel Compatible · IP65

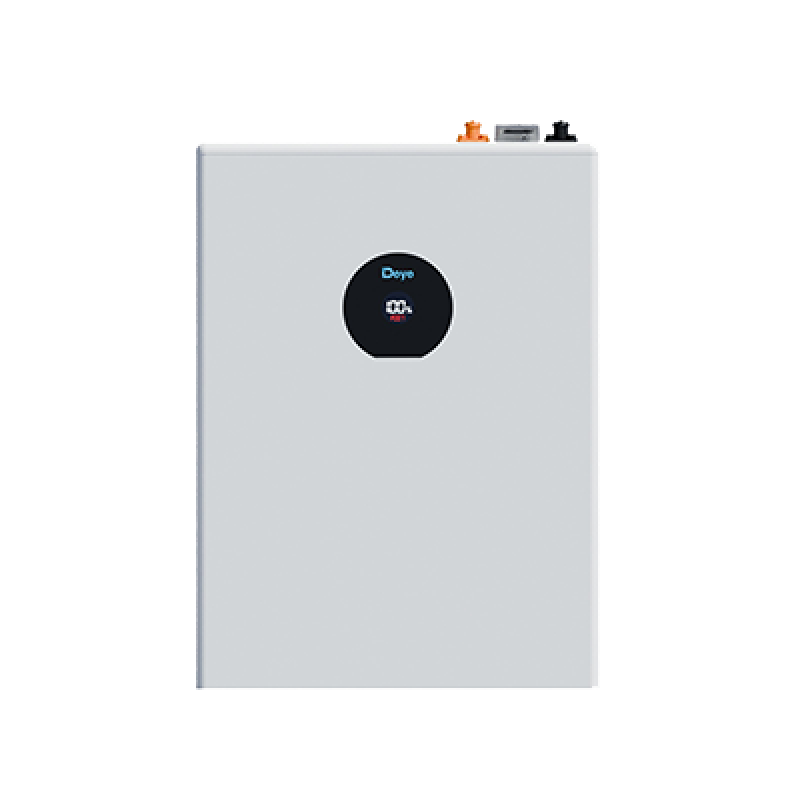

Produktbeschreibung SE-F5 Pro-C Solar Battery System (Display Screen Version) | ESS
+
The Deye SE-F5 Pro is the perfect 5.12 kWh LiFePO₄ high-voltage battery module for modern residential storage systems. With full 1C power (100 A continuous / 150 A peak for 2 minutes), up to 32 modules in parallel (163.84 kWh total), >6,000 cycles, active fuse protection and optional WiFi/Bluetooth monitoring, it offers maximum performance, safety and flexibility in an ultra-compact, lightweight package.
Key Features
Full 1C Performance 100 A continuous charge & discharge – 150 A peak for 120 s
Huge Scalability Up to 32 modules parallel → 163.84 kWh total
Extreme Longevity ≥6,000 cycles at 90 % DoD and 70 % EOL
Maximum Safety Advanced BMS + active fuse, extensive certifications
Smart & Connected CAN/RS485 + optional WiFi/Bluetooth + App monitoring
Ultra-Compact Only 44 kg and 404 × 547 × 141 mm – wall, floor or stack
Technical Specifications
| Category | Details |
|---|
| Battery & Performance |
- Chemistry: LiFePO₄ (100 Ah)
- Energy: 5.12 kWh (100 % usable at 90 % DoD)
- Continuous charge/discharge: 100 A (1C)
- Peak current: 150 A (120 s)
- Cycle life: ≥6,000
|
| ScalМ & Communication |
- Max. 32 modules parallel (163.84 kWh)
- CAN2.0 / RS485 + optional WiFi/Bluetooth + App
- Auto-networking & remote monitoring
|
| Physical & Environment |
- Dimensions: 404 × 547 × 141 mm
- Weight: ~44 kg
- IP21, –20 °C to +55 °C operation
- Wall / floor / stack mounting
|
Deye SE-F5 Pro – The ultimate 5.12 kWh 1C LiFePO₄ module: powerful, safe, scalable and only 44 kg!
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
| Parameter | Specification |
|---|
| Three-Phase Hybrid Inverter SUN-12K-SG05LP3-EU-SM2 |
| Battery Input Data |
| Battery Type |
Lead-acid or Lithium-ion |
| Battery Voltage Range |
40–60 V |
| Max. Charging/Discharging Current |
240 A |
| Number of Battery Inputs |
1 |
| Charging Strategy |
Self-adaptive to BMS |
| PV String Input Data |
| Max. PV Access Power |
24 kW |
| Max. PV Input Power |
18 kW |
| Max. PV Input Voltage |
800 V |
| Start-up Voltage |
160 V |
| MPPT Voltage Range |
200–650 V |
| Rated PV Input Voltage |
550 V |
| Number of MPP Trackers / Strings per MPPT |
2 / 2+2 |
| Max. Operating PV Input Current |
26 A + 26 A |
| Max. Short-Circuit Current |
39 A + 39 A |
| AC Output Data (On-Grid) |
| Rated Output Power |
12 kW |
| Max. Apparent Power |
13.2 kVA |
| Rated AC Current (400 V / 380 V) |
17.4 A / 18.2 A |
| Max. AC Current |
19.2 A / 20 A |
| Peak Power (Off-Grid) |
2 × rated power, 10 s |
| Max. Continuous AC Passthrough |
45 A |
| Rated Grid Voltage |
220/380 V, 230/400 V (3L+N+PE) |
| Efficiency |
| Max. Efficiency |
97.6 % |
| European Efficiency |
97.0 % |
| MPPT Efficiency |
> 99 % |
| Protection & Features |
| 100 % Unbalanced Output |
Yes (each phase up to 50 %) |
| Parallel Operation |
Up to 10 units |
| Diesel Generator Compatible |
Yes |
| General Data |
| Dimensions (W × H × D) |
386 × 660 × 253 mm |
| Weight |
35.2 kg |
| Cooling |
Intelligent air cooling |
| Noise Level |
≤ 55 dB |
| Protection Rating |
IP65 |
| Warranty |
5 years (extendable to 10 years) |
| Parameter | Description / Value |
|---|
| Deye SE-F5 Pro Battery Module |
| Battery Chemistry |
LiFePO₄ |
| Module Capacity |
100 Ah / 5.12 kWh |
| Usable Energy |
5.12 kWh (90 % DoD) |
| Scalability |
Max. 32 modules parallel (163.84 kWh) |
| Nominal Voltage |
51.2 V |
| Operating Voltage Range |
44.8 – 57.6 V |
| Max. Continuous Charge/Discharge |
100 A (1C) |
| Peak Current (120 s) |
150 A |
| Recommended DoD |
90 % |
| Cycle Life |
≥6,000 (25 °C ±2 °C, 70 % EOL) |
| Dimensions (W×H×D) |
404 × 547 × 141 mm (without hanging board) |
| Weight |
≈44 kg |
| Protection Rating |
IP21 |
| Operating Temperature |
Charge 0~55 °C / Discharge –20~55 °C |
| Communication |
CAN2.0, RS485, optional WiFi + Bluetooth + App |
| Installation |
Wall / Floor / Stack mounted |
| Certifications |
UN38.3, MSDS, CE, CB, VDE2510-50, FCC, UL1973, UL9540A, CEC |
| Complete Set: |
Inverter Battery |
