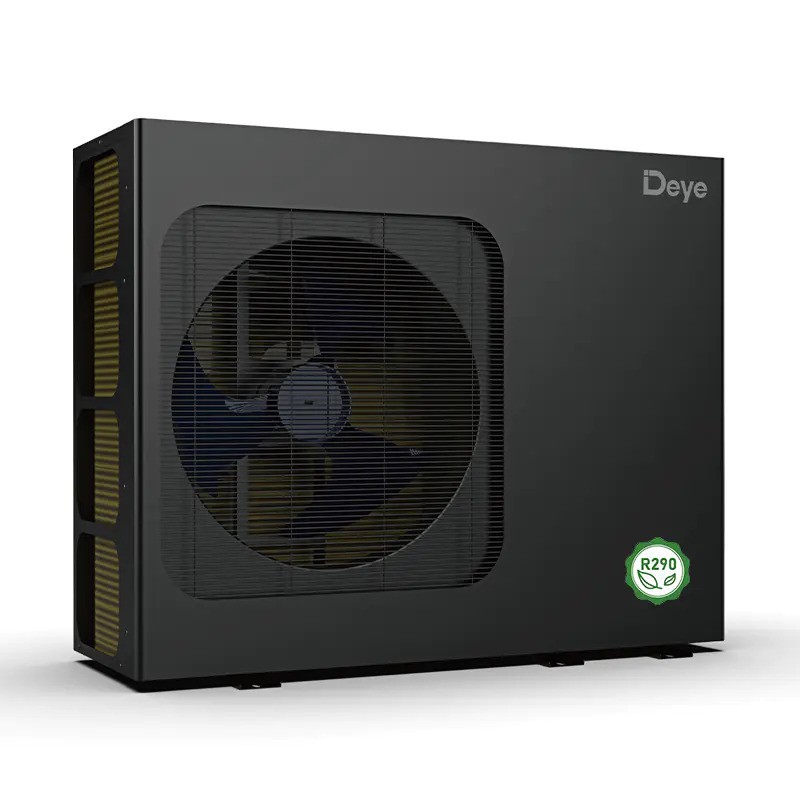

14kW Solar Heat Pump Monoblock R290 (Hybrid ACDC)
The Deye Solar Heat Pump Monoblock (Hybrid ACDC) is an advanced all-in-one heating, cooling and domestic hot water solution, combining high-efficiency heat pump technology with integrated solar energy utilization. Designed for residential and commercial applications, it delivers reliable, all-season comfort with outstanding energy savings – even under extreme weather conditions.
Key Advantages
Heating, Cooling & Hot Water
One system for space heating, air conditioning and domestic hot water
Integrated Solar Technology
Built-in solar MPPT for maximum self-consumption and reduced grid dependency
Monoblock Design
All refrigeration components integrated for fast, simple installation
Full DC Inverter Technology
Adaptive compressor speed for high efficiency and low operating costs
Natural Refrigerant R290
Ultra-low GWP refrigerant for maximum environmental protection
High Energy Efficiency A+++
Outstanding efficiency at 35 °C flow temperature, A++ at 55 °C
SVPWM Control Technology
Stable, quiet and highly efficient system operation
Robust Galvanized Steel Housing
Excellent corrosion resistance and long service life
Deye Solar Heat Pump Monoblock (Hybrid ACDC)
Heating · Cooling · Hot Water · Solar MPPT · R290 · DC Inverter · A+++ Efficiency · All-Season Comfort
Product Safety Act (German "ProdSG")
Manufacturer: NINGBO DEYE INVERTER TECHNOLOGY Co., LTD
Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China
Tel: +86 (0) 574 8622 8957 E-mail: service@deye.com.cn
Responsible importer: SYD Green Energy GmbH & Co. KG
Represented by:
SYD Verwaltungs GmbH
An der Gümpgesbrücke 26
41564 Kaarst
Deutschland
Diese vertreten durch: Andrej Dedic und Maurice Dedic
Tel.: +492131 52811-23
Mail: info@solarset.shop
No additional variants available.
| Model | 4kW | 6kW | 8kW | 10kW | 12kW | 14kW | 16kW | 12kW (3ph) | 14kW (3ph) | 16kW (3ph) |
|---|
| Model Code |
DAWF1-ACDC-04R3EP |
DAWF1-ACDC-06R3EP |
DAWG1-ACDC-08R3EP |
DAWG1-ACDC-10R3EP |
DAWG1-ACDC-12R3EP |
DAWG1-ACDC-14R3EP |
DAWG1-ACDC-16R3EP |
DAWG1-ACDC2-12R3EP |
DAWG1-ACDC2-14R3EP |
DAWG1-ACDC2-16R3EP |
| Power Supply |
| AC Input |
AC 220–240 / 1 / 50 |
AC 380–415 / 3 / 50 |
| PV String Input Data |
| Voc |
DC 80–410V |
DC 80–410V |
DC 80–410V |
DC 200–750V |
| Isc |
≤12A |
≤20A |
≤26A |
≤13A |
| MPPT Trackers |
1 |
1 |
2 |
2 |
| Strings / MPPT |
1 |
2 |
2 |
1 |
| Cooling Performance (A35/W18) |
| Capacity (kW) |
4.5 |
6.5 |
8.3 |
10.0 |
12.0 |
14.0 |
16.0 |
12.0 |
14.0 |
16.0 |
| EER |
5.5 |
5.1 |
5.15 |
4.75 |
4.5 |
4.2 |
3.9 |
4.5 |
4.2 |
3.9 |
| General Data |
| Refrigerant |
R290 / GWP3 |
| Operating Range – Cooling |
-5 ~ 48 °C |
| Operating Range – Heating |
-25 ~ 35 °C |
| Sound Power Level (dB) |
55 |
58 |
59 |
60 |
65 |
65 |
68 |
65 |
65 |
68 |
| Net Weight (kg) |
103 |
156 |
171 |
169 |
| Gross Weight (kg) |
114 |
169 |
184 |
182 |
